FSS电动天棚帘

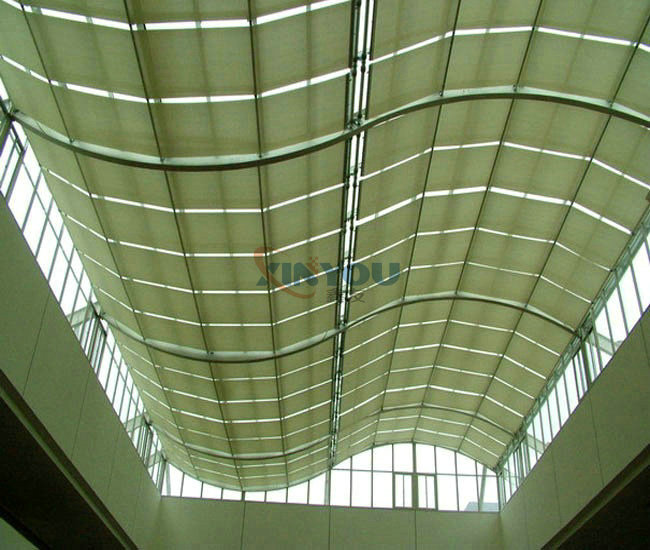

FSS电动天棚帘应用

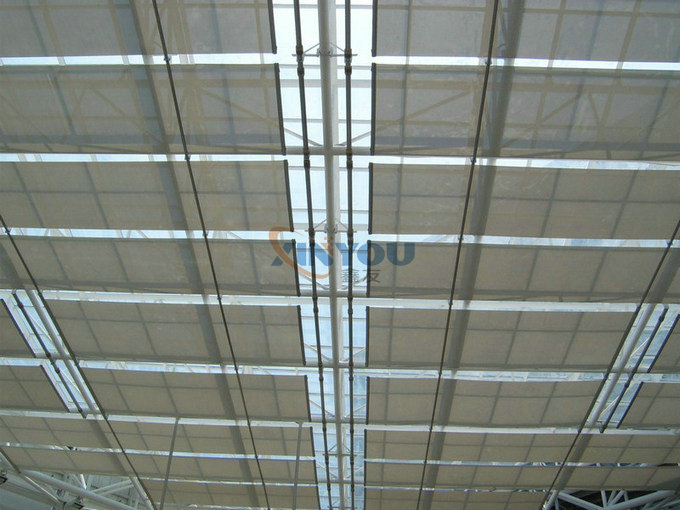

FSS电动天棚帘应用

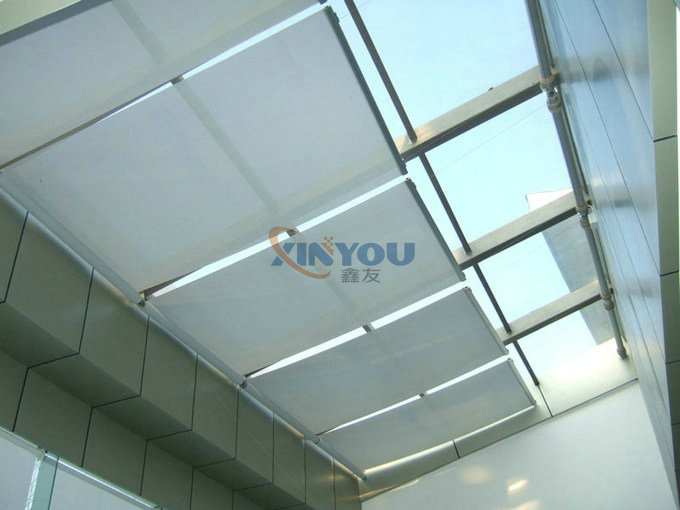

FSS电动天棚帘应用

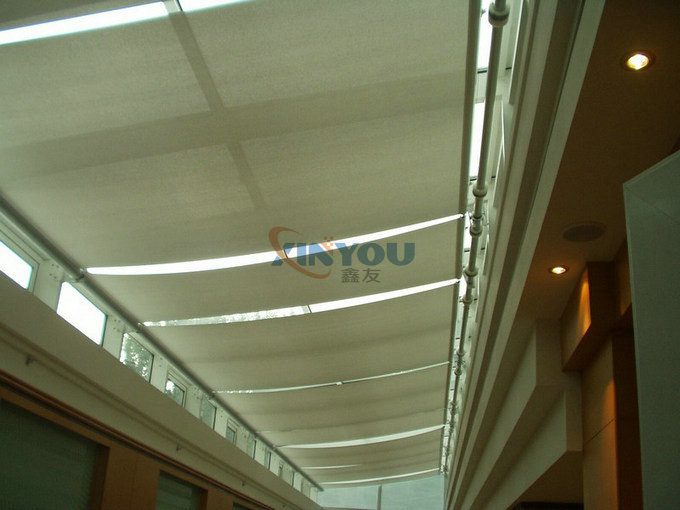

FSS电动天棚帘应用
简介
系 统:弹簧张力系统。
动 力:多种管状电机可选。
导向系统:面积较大时,采用导轨或钢丝绳导向。
面料选择:具备一定抗拉强度的眷恋面料。
开合模式:单开(特定条件下可以实行双开)
控制方式:可选配无线电、红外控制系统及手动开关等,亦可实现群控、智能等多种控制方式。
效 果:使用时,面料平整的张紧着,装饰效果简洁明快。
应用场所:弯曲、倾斜或水平的中小型遮阳场所,如酒店、咖啡厅等玻璃顶。
System: |
Double tracks and run in level |
Dynamic: |
double output motor to make sure the track operation in same speed and ensure the roof blinds synchronous open and close. |
Driving Mode: |
Tracked driving. |
Fabric Choice: |
Standard and sunscreen fabric. |
Open and close model: |
single open, double open. |
Control Method: |
Outlay wireless controller, wireless remote control is adopted, also manual and intelligent control also could be realized. |
Effect: |
The fabric looks average wave as the roof blinds spread totally. |
Application: Medium or small sunshade place. It is widely used in civil and commercial place such as the Residences, flower stand, glass house, coffee palace, etc. |

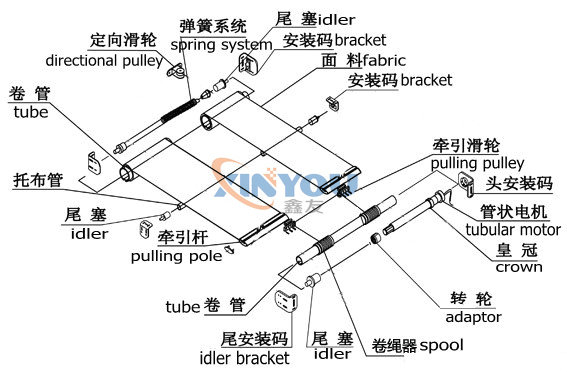

产品结构示意图
电机参数/Motor Parameters
型号 |
电源 |
功率 |
力矩 |
转速 |
行程 |
XY50A-6/22 |
220V 50HZ |
120W |
12Nm |
22rpm |
32/42圈 |
XY50A-30/12 |
220V 50HZ |
160W |
30Nm |
12rpm |
26圈 |
XY50A-40/12 |
220V 50HZ |
200W |
40Nm |
12rpm |
26圈 |
XY50A-50/12 |
220V 50HZ |
240W |
50Nm |
12rpm |
26圈 |
XY50B-12/22 |
220V 50HZ |
120W |
12Nm |
22rpm |
32/42圈 |
