FTS电动天棚帘

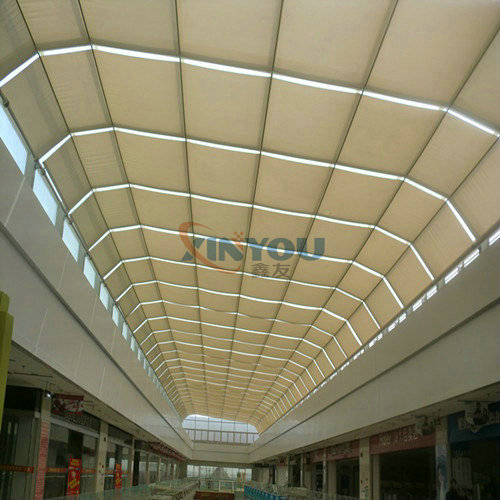

FTS电动天棚帘应用

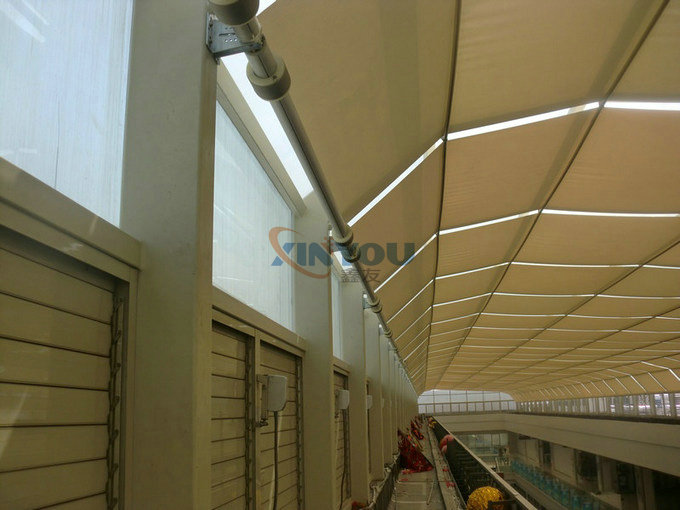

FTS电动天棚帘应用

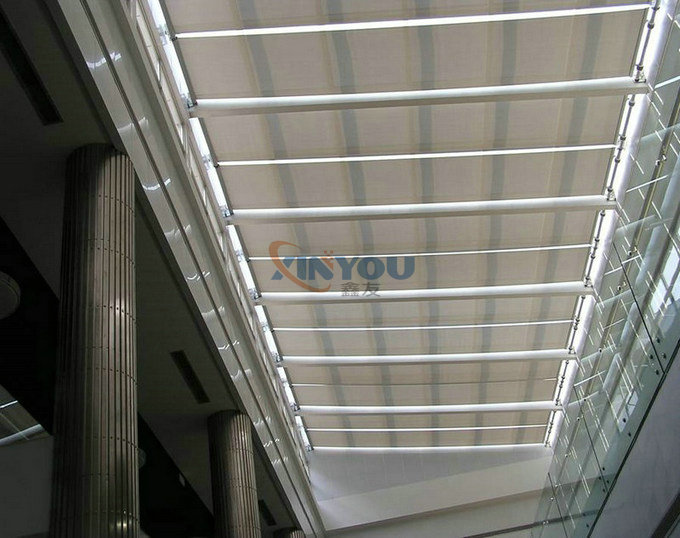

FTS电动天棚帘应用
FTS电动天棚帘应用
简介
FTS天棚帘特别适用于普通电动卷帘无法安装的弯曲、倾斜的场合，整个系统由驱动系统、面料和控制系统三部分组成，驱动系统采用2个FTS专用管状电机，分别安装在两条卷管中，面料一端固定在其中一条卷管上，固定面料另一端的钢丝绳卷曲在另一条卷管的卷绳器上。这两台电机通过一个专用的控制器协调工作，其中一台电机提供面料运行的动力，另一台电机的刹车同时工作，提供一定的阻力拖住面料，避免面料下坠，天棚完全打开后，面料会卷在其中一条卷管上，运行中或停止时面料均有张力，可制作大面积的平面或弧形面的天棚帘系统。
|
System: |
Fabric tension system, the most effective intelligent sunshade solution plan |
|
Dynamic: |
Two same FTS models specialized tubular motor with inserted electric brake system, the outside controller could be connected to adjust the strength. |
|
Driving Mode: |
Tracked driving. |
|
Fabric Choice: |
polyester fiber with PVC coating or grassfire with PVC coating after auto frottage treatment, The required fabric color is steady and have tensile strength. |
|
Open and close model: |
single open, double open. |
|
Control Method: |
Outlay wireless controller, wireless remote control is adopted, also manual and intelligent control also could be realized. |
|
Effect: |
The fabric is smooth and the decorative effect is simple and lively. |
|
Application: Large sunshade place. The electric roof blinds is widely used in various of glass and daylighting roof in level and bevel. |
|

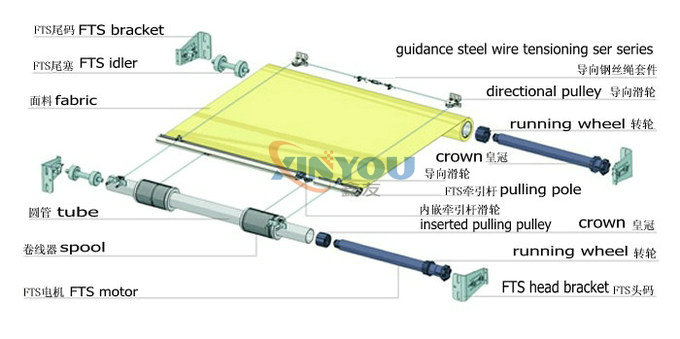

产品结构示意图
电机参数/Motor Parameters
型号
电源
功率
力矩/转速
最大圈数
最大面积
应用
FTS25/17
220V 50HZ
150W
25Nm/17rpm
46圈
25㎡
配合90管，使用专用控制器
FTS55/17
220V 50HZ
350W
55Nm/17rpm
35圈
40㎡
FTS70/17
220V 50HZ
390W
70Nm/17rpm
35圈
50㎡
