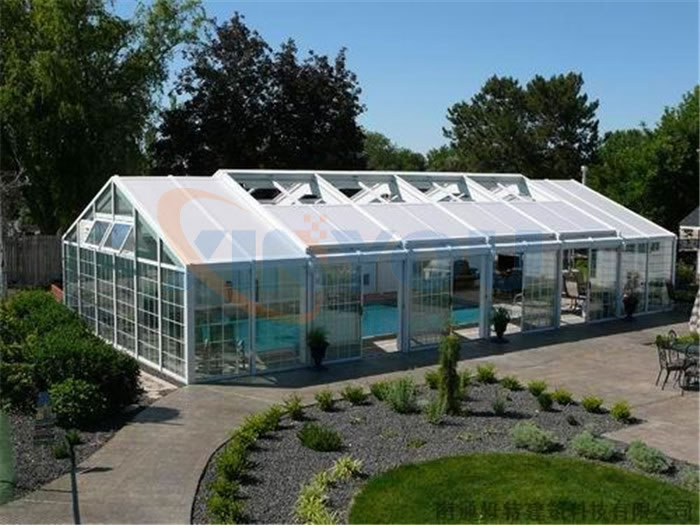

无源可开启屋顶系统

产品概述:

无源可开启屋顶系统/ Passive Opening Roof System
  系统原理:屋顶导轨设计具有一定的坡度,利用屋顶的重力分力可实现紧急情况下无源自动开启。具有电动,手动,消防联动和无源自动四种操作方式,满足屋顶在正常,异常,紧急三种状态下顺利开启。Systemprinciple: With a certain slope roof rail design, the roof can automatically openwith the gravity component in emergency. It has four opening modes( manual,electric, fire linkage and passive automatic), which can meet opening demand innormal, abnormal, &emergency cases.
系统优点:
  l   无源可开启:遇火灾等紧急情况下移动屋顶会自动开启,达到消防排烟要求,也可在需要时自由开合,满足商业使用功能要求。
  l   阻尼缓冲性:驱动系统设有阻尼设置,在各种方式开启时,特别是移动屋顶被重力自动开启时阻尼限速,防止屋顶冲击损坏,确保人员安全及结构安全。
  l     具消防联动性:可实现消防联动规范要求屋顶在45秒内完全打开,进行及时有效排烟,消防营救工作。
  l   系统可靠性强:驱动系统与阻尼装置为一体化设计,结构紧凑,外形尺寸小,齿轮-齿条传动采用浮动,啮合结构,啮合精度高,可靠性强。
  l     操控简单:系统性能稳定,运行安全可靠,可远程集中控制,操作方便。
  l     防水性强:采用多道防水和排水系统设计,确保在关闭时无漏水现象。
System Advantage:
n   Passive opening
n   Good damping buffer
n   Fire fighting linkage control system
n   Reliable system
n   Easy operation
n   Strong waterproof
  应用范围:单组面积为50~300㎡。
  控制方式:可采用单组独立。
  屋顶结构:主结构以钢架结构为主,屋面系统可采用金属屋面,膜结构,钢化玻璃,PC阳光板等材料。
  应用场所:中小体育场馆,游泳场,图书馆,展览室,商业中庭,星级酒店中庭和温泉浴池等公共建筑。
Application area: single area is between 50㎡ and 300㎡.
Control mode: single control available.
Roof structure: the main structure is steel frame,roof system can be made of metal roofing, membrane structure, tempered glass,PC sunshine board, etc.
Application scope: small &medium-sizedstadiums, swimming pool, library, exhibition room, commercial atrium, StarsHotel atrium and spas and other public buildings.
