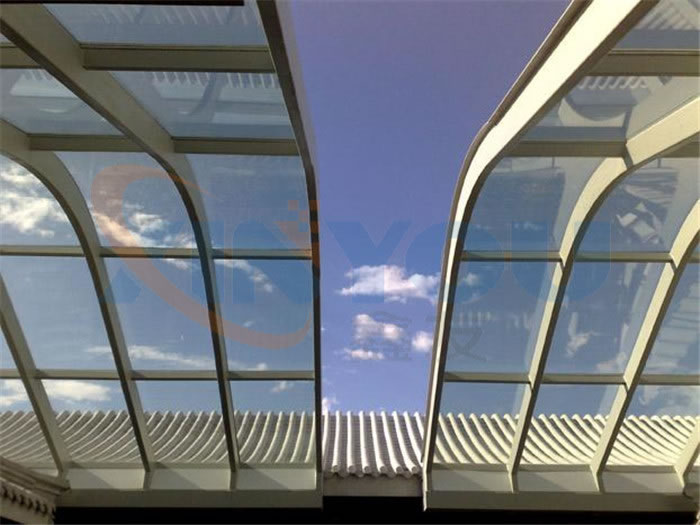

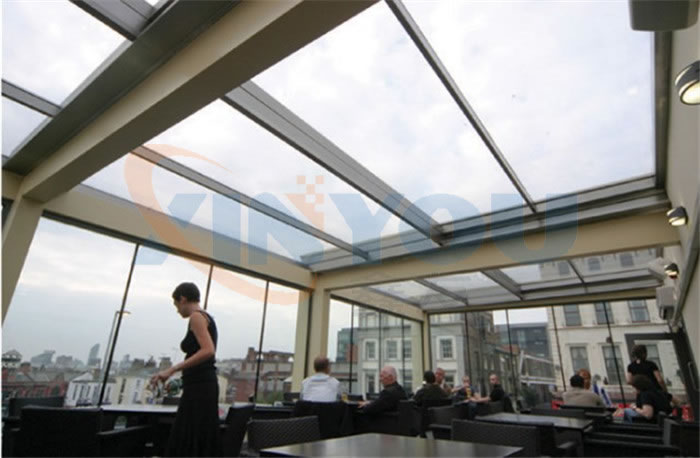

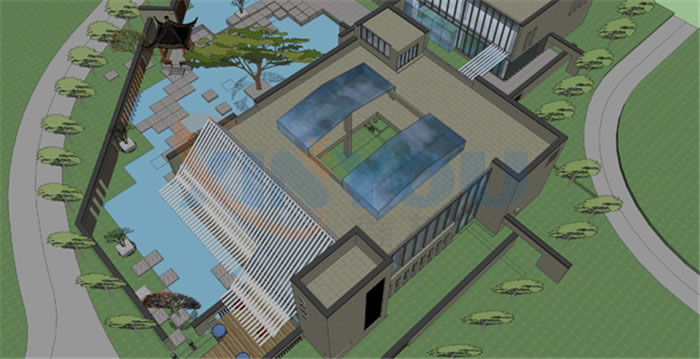

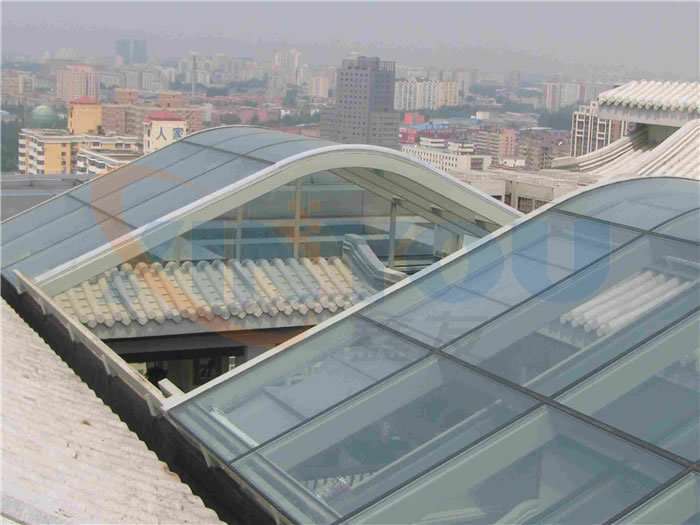

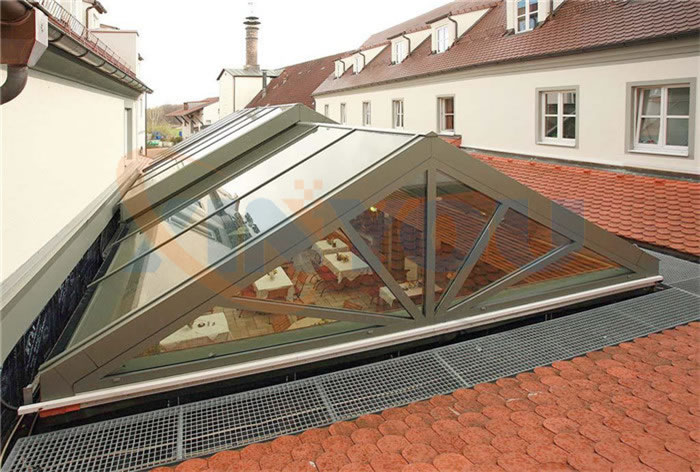

轻型开合屋顶系统

产品概述:

轻型开合屋顶系统/ Light Retractable Roof System
  系统原理:驱动电机通过传动轴输送动力给齿轮箱,由齿轮带动齿条,使屋顶在轨道上进行有规律的移动,实现电动遥控屋顶的开启与关闭。一般采用两侧轨道独立驱动,由控制系统实现精确同步运行,亦可根据空间位置情况,两侧采用一个电机同轴驱动,可设置智能管家系统,在雨天无人操作时屋顶自动关闭,避免雨水进入室内。
System principle: The drivingmotor delivers power to the gear box through a transmission shaft, gears are drivenby gear racks, which will make the roof on the track be moving in regular. Andthus the roof can open &close by remote control.
系统优点:
  l  超低噪音:运行平稳,噪音小于55分贝。
  l  承载力强:12级大风及8级地震荷载下整体结构安全稳固。
  l  专利技术:采用变形适应,容差和精确同步技术,平滑开合。
  l  轻质美观:采用轻型结构设计,精致美观,并可实现各种造型。
  l  可靠性强:采用专用轨道,滑块设计,抗污染能力及可靠性强。
  l  人性化设计:自动化成都高,人性化界面,操控简便,可配置手动操作功能,供紧急情况下使用。
  l  防水性高:设计有特殊的密封防和排水系统,确保在关闭状态下无漏水现象,并具有较好的气密性。
System Advantage:
n   Lower noise
n   Strong bearing capacity
n   Proprietary technology
n   Light and beautiful
n   Reliable system
n   Humanization design
n   Strong waterproof
  应用范围:单组面积<1000㎡。
  屋顶造型:平面型屋顶,人字形屋顶,圆弧形屋顶和M型屋顶等。
  屋顶结构:钢架结构或铝合金结构,屋面系统可采用金属屋面,膜结构,钢化玻璃,PC阳光板等材料。
  功能配置:遥控器,智能管家系统,多组屋顶一体化控制和实现消防联动控制。

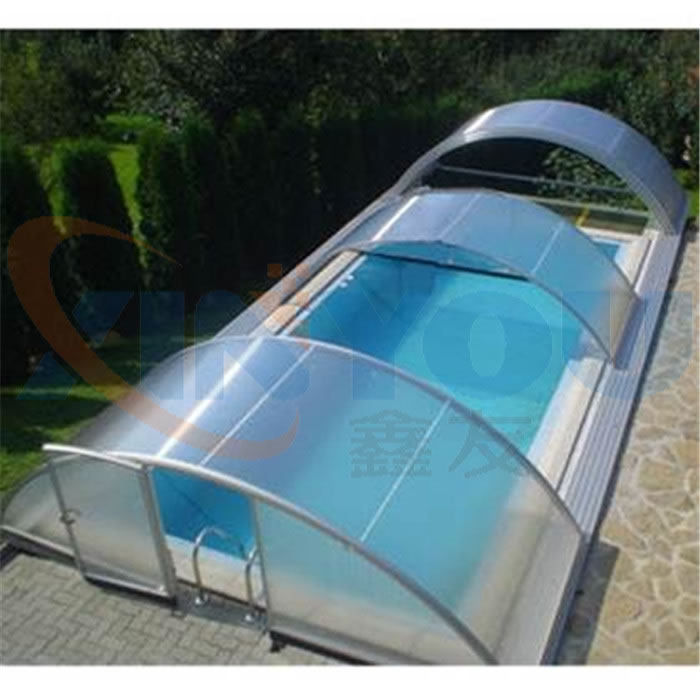

  应用场合:中小型体育馆,游泳馆,图书馆,展览室,商业中庭,星级酒店中庭,会所和高档别墅的屋顶,下沉式庭院,阳光房等。
Application area: single area should be no morethan 1000㎡.
Roof shape: flat roof, gable roof, arc roof and Mtype roof, etc.
Roof structure: the main structure is steel frameor aluminum alloy, roof system can be made of metal roofing, membranestructure, tempered glass, PC sunshine board, etc.
Function configuration: remote control,intelligent manager system, integrated control of multi-group roofs, &fire fighting linkagecontrol system.
Application scope: small &medium-sizedstadiums, swimming pool, library, exhibition room, commercial atrium, StarsHotel atrium, club house, luxury villa roof, sink courtyard, sun room, andother public buildings.
